Prudential Tanks

What Makes the Prudential Tanks Superior?

Our team of seasoned technicians and customers. Their hands on experience creates efficiencies that maximize the productivity of our project. Only True Double Wall Directive 55 Compliant Tank of its kind and purpose!

Every Prudential Tank Includes:

  • A safety first approach
  • Less manpower and man hours required.
  • No picker. No winching. No chains.
  • Dramatic reduction in driver exposure to time on highway and location.
  • Reduced trip and slip hazards.
  • Reduce/Eliminate environmental spill hazards.
  • Green for Go alarm indication system.
  • Steam coils.
  • True 110% dual containment. No berms. No liners. No matting.
  • Dramatic reduction in trucking and transport costs.
  • Same foot print as other dual containment tanks, but with 40% greater capacity.
  • No picker. No winch trucks. No pilot trucks (BC).
  • Greatly reduced fluid transfer costs when moving from location to location.
  • Invert and drilling fluid storage.
  • Diesel storage.
  • Frac fluids.
  • Production and workovers.

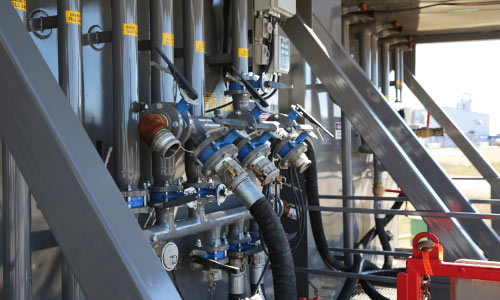

Master Tank Features

  • True interstitial space capacity is 10% of the inner tank volume.
  • Total fluid capacity of the master tank is 116 m3, split into two compartments: the primary tank has 80 m3 of fluid capacity and the secondary tank has 36 m3 of fluid capacity.
  • All Prudential units have an air system that is operated by the air compressors found on standard trucks with air brake systems.
  • Primary compartment has a jetted circulating system designed to keep consistent viscosity for fluids such as invert, drillings muds and brine.
  • Fluid transfers via Pioneer P3 self-priming pump with 20-hp, 480-volt 30-amp motor.
  • Trailer is Department Of Transportation certified and compliant across Canada.
  • Fluid levels and temperatures are displayed on a Garnet SeeLevel II display.
  • Audible and visual alarm for high-level fluids.

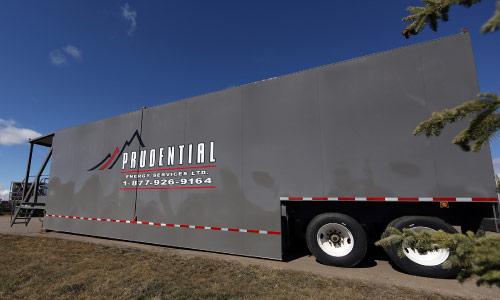

Slave Tank Features

  • Interstitial space capacity is 10% of inner tank volume.
  • Total slave tank fluid capacity is 116 m3.
  • Tank has a jetted circulating system designed to keep products, like invert, mixed.
  • Master tank provides pump to circulating system.
  • Fluid levels and temperature are displayed on a Garnet SeeLevel II display.
  • Audible and visual alarm for high-level fluids.

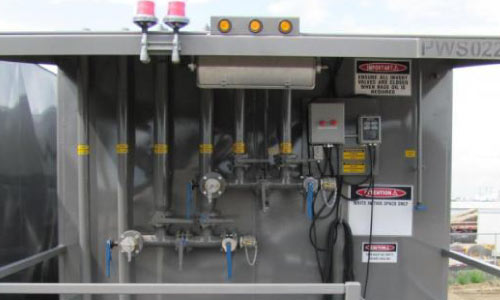

Dual Slave Tank Features

  • Same features as Master and Slave.
  • Extremely versatile running multiple mud systems.
